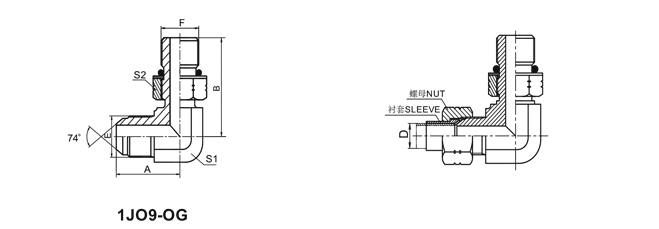

1JO9-OG 90°弯 美制JIC外螺纹74°外锥 / SAE外螺纹带O形圈轻系列ISO 11926-3

1JO9-OG 90°弯 美制JIC外螺纹74°外锥 / SAE外螺纹带O形圈轻系列ISO 11926-3

  • 所属分类:美制液压过渡接头
  • 浏览次数:
  • 发布日期:2020-05-05
  • 产品概述
  • 性能特点
  • 技术参数


代 号 PART  NO.螺 纹     THREADO形圈 O-RING尺 寸    DIMENSIONS
EFF端ABS1S2
1JO9-04-03OG7/16"X203/8"X24O90324.5281114
1JO9-04OG7/16"X207/16"X20O90424.527.21117
1JO9-04-05OG7/16"X201/2"X20O90526.629.91417
1JO9-04-06OG7/16"X209/16"X18O90626.631.81419
1JO9-05-04OG1/2"X207/16"X20O90426.6301417
1JO9-05OG1/2"X201/2"X20O90526.6291417
1JO9-05-06OG1/2"X209/16"X18O90626.631.81419
1JO9-06-04OG9/16"X187/16"X20O90426.9301417
1JO9-06-05OG9/16"X181/2"X20O90526.929.91417
1JO9-06OG9/16"X189/16"X18O90626.931.81419
1JO9-06-08OG9/16"X183/4"X16O9083036.81924
1JO9-08-04OG3/4"X167/16"X20O90432331917
1JO9-08-06OG3/4"X169/16"X18O9063333.51919
1JO9-08OG3/4"X163/4"X16O9083336.81924
1JO9-08-10OG3/4"X167/8"X14O91034.8442227
1JO9-08-12OG3/4"X161.1/16"X12O91237.9512732
1JO9-10-08OG7/8"X143/4"X16O90838402227
1JO9-10OG7/8"X147/8"X14O91037.8442227
1JO9-10-12OG7/8"X141.1/16"X12O91241512732
1JO9-12-08OG1.1/16"X123/4"X16O90845442724
1JO9-12-10OG1.1/16"X127/8"X14O91044.2472727
1JO9-12OG1.1/16"X121.1/16"X12O91244.2512732
1JO9-12-16OG1.1/16"X121.5/16"X12O91647.854.53341
1JO9-14OG1.3/16"X121.3/16"X12O91447.5533036
1JO9-14-16OG1.3/16"X121.5/16"X12O91648.554.53341
1JO9-16-12OG1.5/16"X121.1/16"X12O91248.854.53332
1JO9-16-14OG1.5/16"X121.3/16"X12O91449563336
1JO9-16OG1.5/16"X121.5/16"X12O91648.854.53341
1JO9-16-20OG1.5/16"X121.5/8"X12O92053.8594150
1JO9-20-16OG1.5/8"X121.5/16"X12O91655.559.54141
1JO9-20OG1.5/8"X121.5/8"X12O92055.3594150
1JO9-20-24OG1.5/8" X121.7/8"X12O92459.4634855
1JO9-24OG1.7/8"X121.7/8"X12O92462.5634855
1JO9-32OG2.1/2"x122.1/2"x12O93280766370


注: 1 螺母及衬套需另行订货。管子直径 D 为公制时,配用螺母及衬套分别选用 NB200、NB500。管子直径为英制时,配用螺母及衬套分别 选用 NB200、NB300。2 F 端与 ISO 11926-1 油口相配。

Note1 Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and  sleeve NB300 is suitable for inch tube. 2 F end is connected with ISO 11926-1port.
