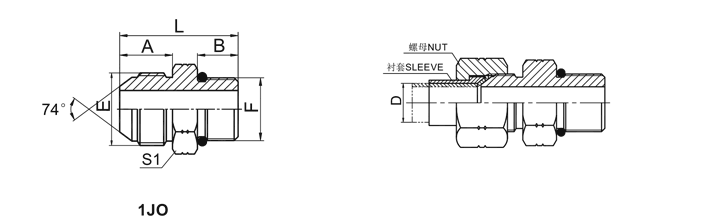

1JO美制 JIC 外螺纹74°外锥 / SAE外螺纹带O形圈轻系列ISO 11926-3

1JO美制 JIC 外螺纹74°外锥 / SAE外螺纹带O形圈轻系列ISO 11926-3

  • 所属分类:美制液压过渡接头
  • 浏览次数:
  • 发布日期:2020-05-05
  • 产品概述
  • 性能特点
  • 技术参数



代    号
PART  NO.
螺 纹   THREADO形圈 O-RING尺 寸    DIMENSIONS
EFF端ABLS1
1JO-04-027/16"X205/16"X24O902147.5427.514
1JO-04-037/16"X203/8"X24O903147.5427.514
1JO-047/16"X207/16"X20O904149.142914
1JO-04-057/16"X201/2"X20O905149.142917
1JO-04-067/16"X209/16"X18O906149.933017
1JO-04-087/16"X203/4"X16O9081411.133322
1JO-051/2"X201/2"X20O905149.142917
1JO-05-041/2"X207/16"X20O904149.142914
1JO-05-061/2"X209/16"X18O906149.933017
1JO-05-081/2"X203/4"X16O9081411.133322
1JO-069/16"X189/16"X18O90614.19.933017
1JO-06-049/16"X187/16"X20O90414.19.142917
1JO-06-059/16"X181/2"X20O90514.19.1429.517
1JO-06-089/16"X183/4"X16O90814.111.133322
1JO-06-109/16"X187/8"X14O91014.112.73727
1JO-06-129/16"X181.1/16"X12O91214.115.094032
1JO-083/4"X163/4"X16O90816.711.133622
1JO-08-043/4"X167/16"X20O90416.79.143422
1JO-08-063/4"X169/16"X18O90616.79.933522
1JO-08-103/4"X167/8"X14O91016.712.74027
1JO-08-123/4"X161.1/16"X12O91216.715.094332
1JO-08-143/4"X161.3/16"X12O91416.715.094336
1JO-107/8"X147/8"X14O91019.312.742.527
1JO-10-087/8"X143/4"X16O90819.311.133924
1JO-10-127/8"X141.1/16"X12O91219.315.0945.532
1JO-10-147/8"X141.3/16"X12O91419.315.0945.536
1JO-121.1/16"X121.1/16"X12O91221.915.094832
1JO-12-081.1/16"X123/4"X16O90821.911.134330
1JO-12-101.1/16"X127/8"X14O91021.912.74530
1JO-12-141.1/16"X121.3/16"X12O91421.915.094836
1JO-12-161.1/16"X121.5/16"X12O91621.915.094838
1JO-141.3/16"X121.3/16"X12O91422.615.0948.536
1JO-14-121.3/16"X121.1/16"X12O91222.615.0948.532
1JO-14-161.3/16"X121.5/16"X12O91622.615.0950.538
1JO-161.5/16"X121.5/16"X12O91623.115.094938
1JO-16-121.5/16"X121.1/16"X12O91223.115.094936
1JO-16-141.5/16"X121.3/16"X12O91423.115.094936
1JO-16-201.5/16"X121.5/8"X12O92023.115.095350
1JO-201.5/8"X121.5/8"X12O92024.315.0954.550
1JO-20-161.5/8"X121.5/16"X12O91624.315.0952.546
1JO-20-241.5/8"X121.7/8"X12O92424.315.0954.555
1JO-241.7/8"X121.7/8"X12O92427.515.0957.555
1JO-24-201.7/8"X121.5/8"X12O92027.515.0957.550
1JO-24-321.7/8"X122.1/2"X12O93227.515.0959.570
1JO-322.1/2"X122.1/2"X12O93233.915.096670


注:螺母及衬套需另行订货。管子直径D为公制时,配用螺母及衬套分别选用NB200、NB500。管子直径为英制时,配用螺母及衬套分别选用 NB200、NB300。

Note: Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 andsleeve NB300 is suitable for inch tube.
