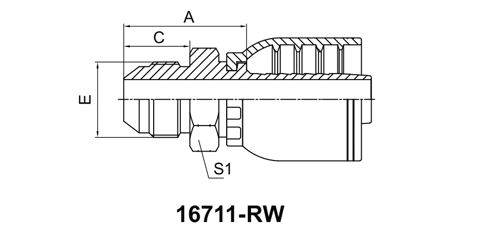

16711-RW 美制JIC外螺纹74° 外锥面

16711-RW 美制JIC外螺纹74° 外锥面

  • 所属分类:一体式软管接头
  • 浏览次数:
  • 发布日期:2020-05-05
  • 产品概述
  • 性能特点
  • 技术参数



代号

PART NO.

螺纹E

 THREAD E

软管 HOSE BORE尺寸 DIMENSIONS
公称内径DN标号DASHACS1
16711-04-03 RW7/16"X20503261412
16711-04-04 RW7/16"X2060426.51412
16711-05-04 RW1/2"X2060426.51414
16711-05-05 RW1/2"X2080526.51414
16711-05-06 RW1/2"X20100626.51417
16711-06-04RW9/16"X1860426.514.117
16711-06-05 RW9/16"X1880526.514.117
16711-06-06 RW9/16"X18100626.514.117
16711-08-06 RW3/4"X16100631.516.722
16711-08-08 RW3/4"X1612083216.722
16711-10-06 RW7/8"X1410063219.324
16711-10-08 RW7/8"X14120834.319.324
16711-10-10RW7/8"X14161035.519.324
16711-12-08RW1.1/16"X1212083921.927
16711-12-10RW1.1/16"X1216104021.927
16711-12-12RW1.1/16"X1220124021.927
16711-12-16RW1.1/16"X1225164121.930
16711-14-10RW1.3/16"X12161041.522.632
16711-14-12RW1.3/16"X12201240.622.632
16711-16-12RW1.5/16"X12201242.523.136
16711-16-16RW1.5/16"X12251643.523.136
16711-20-16 RW1.5/8"X12251646.524.346
16711-20-20 RW1.5/8"X12322047.524.346
16711-24-20 RW1.7/8"X1232205327.550
16711-24-24 RW1.7/8"X1240245327.550
16711-32-32 RW2.1/2"X1250326233.965


注:1.表中代号用于编织软管.    2.如需用于缠绕软管代号改为16712-XX-XXRW.

NOTE:1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 16712-XX-XXRW.
