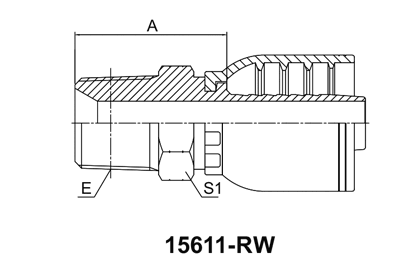

| 代号 PART NO. | 螺纹 E THREAD E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||
| 公称内径 DN | 标号 DASH | A | S1 | ||
| 15611-02-04RW | Z1/8"X27 | 6 | 04 | 22.5 | 12 |
| 15611-04-04RW | Z1/4"X18 | 6 | 04 | 28 | 17 |
| 15611-06-04RW | Z3/8"X18 | 6 | 04 | 28 | 19 |
| 15611-06-05RW | Z3/8"X18 | 8 | 05 | 28 | 19 |
| 15611-06-06RW | Z3/8"X18 | 10 | 06 | 30 | 19 |
| 15611-08-06RW | Z1/2"X14 | 10 | 06 | 34.5 | 22 |
| 15611-08-08RW | Z1/2"X14 | 13 | 08 | 34.5 | 22 |
| 15611-12-10RW | Z3/4"X14 | 16 | 10 | 38 | 27 |
| 15611-12-12RW | Z3/4"X14 | 19 | 12 | 38.5 | 27 |
| 15611-12-16RW | Z3/4"X14 | 25 | 16 | 38.5 | 32 |
| 15611-16-10RW | Z1"X11.5 | 16 | 10 | 45 | 36 |
| 15611-16-12RW | Z1"X11/5 | 19 | 12 | 45 | 36 |
| 15611-16-16RW | Z1"X11.5 | 25 | 16 | 45 | 36 |
| 15611-20-16RW | Z1.1/4"X11.5 | 25 | 16 | 49.5 | 46 |
| 15611-20-20RW | Z1.1/4"X11.5 | 32 | 20 | 49 | 46 |
| 15611-24-24RW | Z1.1/4"X11.5 | 38 | 24 | 51 | 50 |
| 15611-32-32RW | Z2"X11.5 | 51 | 32 | 55 | 65 |
注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为15612-XX-XXRW。
NOTE:1.For use with braided hoses. 2.If use with spiral hoses, hose fifitting series number is15612-XX-XXRW.
